Welcome to the Web browser sound card oscilloscope, spectrum analyzer and signal generator homepage !
- This web software utilizes the computer's audio interface to provide a
real-time oscilloscope, FFT spectrum analyzer, and waveform generator (sine, square, triangle).
- The microphone input is used for acquiring analog signals, while the audio output allows for controlled
emission of synthetic
signals.
- Ideal for electronic testing, acoustic analysis, and DSP experimentation via browser, without
installation.

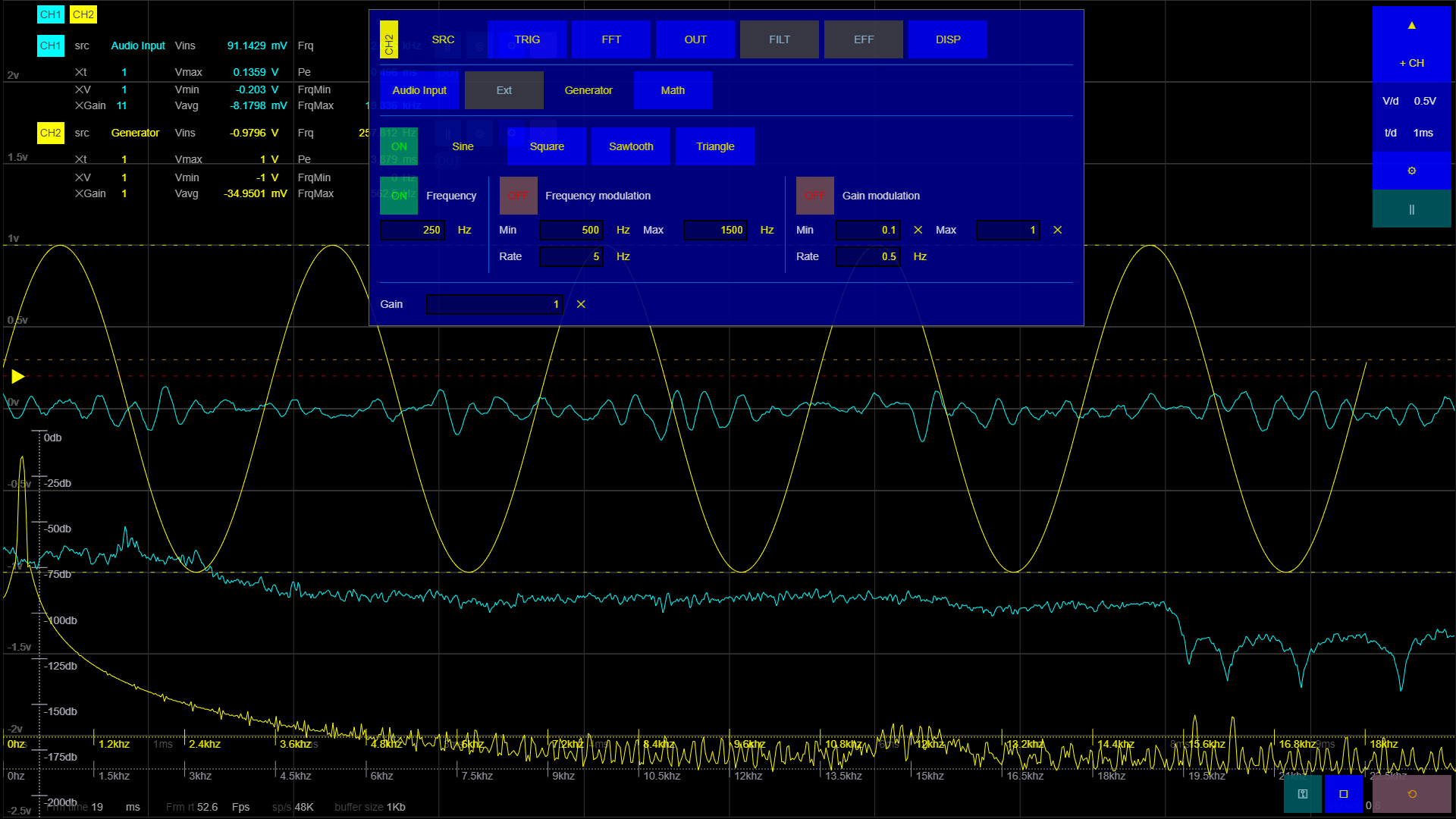

👉 Please click this link or
the image below
to access to the application:
Feature list
- oscilloscope
- time and frequency view
- trigger
- cursors
- markers
- colorisations
- lissajous
- signal analyzis
- FFT, frequency, min/max/average V/Hz
- signal generator
- sinus, square, sawtooth
- frequency modulation
- amplitude modulation
- apply effects on signals
- maths (combinate signal together)
- multi channels
- audio channel input (input from audio microphone)
- input from web media file url
- input from web media stream url (eg. web radio)
- Web Radio Picker (module)
- line out
- extensible by modules
